Used 2020 KZ Durango Gold G381REF

Fifth Wheel

Stock #05430A

Dothan, AL

Built for Adventure. Designed for Comfort.

1 of 6

Specifications

Sleeps	6	Slides	5
Length	40 ft 6 in	Ext Width	8 ft 5 in
Ext Height	13 ft 6 in	Int Height	6 ft 9 in
Hitch Weight	2170 lbs	GVWR	16000 lbs
Dry Weight	13000 lbs	Cargo Capacity	3000 lbs
Fresh Water Capacity	67 gals	Grey Water Capacity	93 gals
Black Water Capacity	53 gals	Tire Size	16"
Furnace BTU	35000 btu	Available Beds	King
Refrigerator Type	Gas/Electric	Refrigerator Size	18 cu ft
Convection Cooking	Yes	Cooktop Burners	3
Number of Awnings	1	Axle Weight	10830 lbs
LP Tank Capacity	30 lbs	Water Heater Capacity	12 gal
Water Heater Type	Gas/Electric	AC BTU	30000 btu
TV Info	LR 50" LED TV, BR 32" LED TV	Awning Info	18' Power w/LED Lights
Axle Count	2	Washer/Dryer Available	Yes
Number of LP Tanks	2	Shower Type	Shower w/Seat
Electrical Service	50 amp	VIN	4EZFV3824L6087954

Features

Standard Features (2020)

Construction Features

101" Wide Body Construction
Extra-Reinforced Heavy-Duty Front Fiberglass Cap
Radius Front Cap (for Maximum Turning Radius on Short Bed Trucks)
2" x 3" Welded Aluminum Fore & Aft Floor Joists
2" x 2" Welded Aluminum Sidewall Framing
5" Welded Aluminum Roof Trusses
LCI® Hydraulic Slide System w/Selector Valves
Steel Powder Coated I-Beam w/Drop-Frame Pass-Thru Storage (Offering 160-180 CU FT, F/P Specific)
Lamilux® High-Gloss Ivory-Colored Fiberglass
All Weather Insulation PKG (Roof, Floor, Ceiling, Endcaps & Tanks to R-38)
R-11 2" Sidewalls (w/EGS Metal Backing Strips to Hold All Int. Cabinets)
One-Piece ABS Slideroom Bottoms; Slideroom Floors Insulated to R-24
Walk-On Superflex® TPO Roof Membrane
45 Degree Aluminum Roof Edge
Fully-Vented Attic System
3/8" Roof Decking
5/8" Tongue & Groove, Screwed & Glued Plywood Floor Decking
Full Drop-Frame Aluminum Skirt on Doorside
Pex® In-Floor Heated Waterlines & Kitchen Gray Pipes (All Waterlines & Drainlines are Located Above All Insulation)
Fully Heated & Enclosed Underbelly
Double Insulated & Heated Holding Tanks (R-38 Above & Below Yanks)

Exterior Features

7,000 LB Dexter® Axles w/Self Adjusting Brakes & Height Adjusting Hangers
8-Lug Heavy-Duty Aluminum Rims w/16" E-Range Radial Tires
100% Exterior LED Running Lights & Taillights
Electric Awning w/LED Light Strip
Propane Bottles on same Side of Coach for Easy Access (2 x 30 Lb. Each)
Sealed Battery Storage Compartment on Side of Coach (No Battery Boxes Required)
Dual Front Baggage Doors
Slam Latch Baggage Doors w/Dual Locks
Partially Painted Front Cap w/LED Accent Lights
Frameless Windows
3" x 14" In-Floor Straight Line Heating System w/35,000 BTU Furnace
12 GAL Gas/Electric Hot Water Heater
LED Docking Light & Sewer Hookup Light
Swing-Away Assist Grab Handle
Underneath Spare Tire w/Hoist
Roof Ladder
Deluxe Heated Water Convenience Center (Incl. Black Tank Flush, Power Fresh Tank Water Fill, Winterizing System, Outside Shower & Dry Camping Water Siphon System)
Fully-Finished, Heated & Sealed Basement Storage Compartment
Pre-Wire for Exterior TV

Living Room/Kitchen Features

Residential-Size Pullout Trashcan in Kitchen
Pullout Spice Rack (Most Models)
Dual Pullout Pots & Pans Drawers under Refrigerator & Stove (where available)
Removable Silverware Tray
Storage Shelf under Kitchen Sink
All Kitchen OH Cabinets have Shelf
Heavy-Duty 100 LB Drawer Glides on Every Drawer
Baltic Birch Drawer Boxes
LED-Lighted Kitchen Cabinet Toe Kicks (Most Models)
Large Dining Table w/Pullout Leaf & 2 Heavy-Duty Storage Seat Chairs & 2 Folding Chairs
Kitchen Window (Most Models)
Hidden Cabinet Door Hinges
5" Cabinet Hardware
3/8" Re-Bond Carpet Pad w/22 OZ Residential Carpet
XL Toggle Light Switches
Power Vent Fan in Second Bath (366FBT & 383FLF)
All LED Ceiling & Cabinet Lights w/Multiple On/Off Switches

Bedroom/Bathroom Features

Residential One-Piece Fiberglass Shower Stall w/Built-In Seat & Glass Doors
Shower Skylight
XL Solid Surface Bath Vanity w/Stainless Steel Sink
Porcelain Foot-Flush Toilet
All LED Lights in Bed & Bath w/Multiple Switches
Heavy-Duty 100 LB Drawer Glides on all Drawers
Extra-Wide Bed & Bath Hallway (Most Models)
Pocket Door from Hall to Bath (Most Models)
Bath Towel Bar & Towel Loop (Where Applicable)
12V Fan
XL Bath Linen Closet
XL Deep Bedroom Walk-In Closet
Dual Washer & Dryer Prep
XL Under-Bed Storage
Luxurious Bedspread & Pillow Shams

Options

Exterior

Dual Pane Windows (frameless)
Wireless Observation Backup Camera System
“Off the Grid” Solar Package*
Flex-Air Pin Box
2nd LED Lighted Power Awning (G353RKT, G356RLT, G366FBT, G382MBQ, G384RLT)
Generator Prep
6.5KW LP Onan Generator (requires prep)
Slideout Cover Package (triple slides)
Slideout Cover Package (quad slides)
Slideout Cover Package (five slides)
Heat Pumps on Both A/Cs
3rd A/C Ducted (15,000 BTU)
32" Exterior TV w/Bracket

Interior

House Residential Refrigerator w/1200W Inverter (18 CU FT) IPO 18 CU FT Gas/Electric Refrigerator (N/A CSA option)
Power Vent Fan in Bathroom
Queen Pillowtop Mattress 60" x 80" (Elec. Tilt)
Theater Seating IPO Hide-A-Bed (G382)
Full-Timer's Hardwood Desk IPO Dinette Table
Ottoman w/Storage
*Cannot get House Residential Refrigerator w/“Off the Grid” Solar Package

KZ Advantage Package (Mandatory Option)

Exterior

6-Point Hydraulic Auto Leveling
Polar White High Gloss Gelcoat Exterior Fiberglass
Painted Fiberglass Front Cap
6-Sided Aluminum Framing
Flip-Up Entry Steps (main entry)
50 AMP Service
(2) 15K Ducted A/Cs w/Quiet Cool Ducting System
5/8" T&G Plywood Floor
Key-Alike for Baggage & Entry Doors
Friction Hinge Entry Door w/Shade Prep & Screenshot Feature on Entry Door
X-Large Folding Grab Handle
Undermount Spare Tire
Equa-Flex® Suspension
Nitrogen-Filled Tires
Battery Disconnect
Black Tank Flush
Backup Camera Prep
Roof-Mounted Solar Prep
All Weather Insulation Package (heated, insulated & enclosed underbelly plus foil in floor, roof, front, rear)
2" Towing Receiver Hitch w/4 Pin Wire Harness Connection (3,000 lb tow rating & 300 lb hitch rating)
Roof Ladder
Fully-Vented Attic System w/2 Attic Vents
Leash Latch w/Bonus Beverage Opener

Interior

Maple Glazed Cabinetry
Glazed Solid Hardwood Slideout Fascia
Solid Surface Countertops w/Deep Undermount Stainless Steel Kitchen Sink w/Sink Cover
Chef’s Appliance Package (2-piece SS gas cooktop w/built in oven & 30" convection microwave)
SS Dishwasher
Central Vac System w/Attachments
Power Vent Fan in Main Area
Theater Seating w/Powered Recliner, Heat & Massage Features
Tri-Fold Sleeper Sofa
Solid Hardwood Dinette Table (legless) w/4 Chairs
(3) Motion Sensor Lights (entry, closet, basement)
40" Wideview Fireplace
50" LED TV
Multiple Media Stereo w/DVD/Bluetooth & 3 Zone Speaker Controls
(2) 6.5" Interior Speakers
12V Dual USB Charging Station
Dual Day/Night Roller Shades
Porcelain Foot-Flush Toilet
Stainless Steel Bathroom Sink w/Waterfall Faucet
Plywood Bed Base
Electric Tilt King Bed 70" x 80"
Bedroom Fireplace
32" Bedroom LED TV
7' Tall Main Slide Ceiling Height
Pocket Door for Bathroom and Bedroom

KZ Convenience Package (Mandatory Option)

Exterior

KZ Engage Powered by OneControl w/7" Screen (control system monitors tank levels & battery levels, controls sliderooms, leveling system, awnings, dimmable interior lighting, HVAC controls: includes Wi-Fi prep & connect anywhere prep for full function access by mobile device)
Power Awning w/LED Light Strip
16" G-Range Tires w/Aluminum Wheels
Magnetic Catches for Baggage Doors
Omnidirectional HDTV Antenna
LED Lights in Exterior Speakers

Interior

Residential-Grade Linoleum
18 CU FT Gas/Electric Refrigerator w/Temperature Controls
Matte Black Residential Kitchen Faucet w/Spring Sprayer
Surfex Wood Step in FW Hallway
Dark Accent Trim on Corners/Entry Doors
Vision S Prep (Blind Spot Monitoring)

Bonus Features

Lightest high-profile, wide body, luxury fifth wheels in the industry (average weight is 12,000 LBS)
KZ has received the Dealer Satisfaction Index Award for 19 years
KZ’s 47 years of stable, dedicated manufacturing experience, coupled with its predominantly Amish workforce, heritage and commitment to superb quality, allow us to produce the best value luxury fifth wheel available.

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

First Time Buyers Dream
We were able to tell Scott what we needed it for and he showed us several options that would fit our needs. He wasn’t pushy and allowed us time to talk about our decision so we felt great about it when we decided to purchase. The post purchase process of the walk through for all functions and the store

Katy from Elba, AL
1st RV purchase
Everyone was extremely helpful and patient with us from the owner, Dave, and our sales person Scott to the technician Lewis who educated us on everything and our shopping expert Miranda. Top notch all around.

Rhonda from Tallassee, AL
Bama RV Rocks!!!
Great environment and fun sales manager Scott Carter helped us and took us all around until we found what we needed. He was professional and helpful and just all around pleasant and not pushy!! Nobody was pushy and that was wonderful! They checked our new purchase out to make sure it was ready to go.

Vicki from Troy, AL

We are here to help, call us at
334-784-0582 or Contact Us

We are here to help!

;

Bama RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @334-784-0582 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Used 2020 KZ Durango Gold G381REF

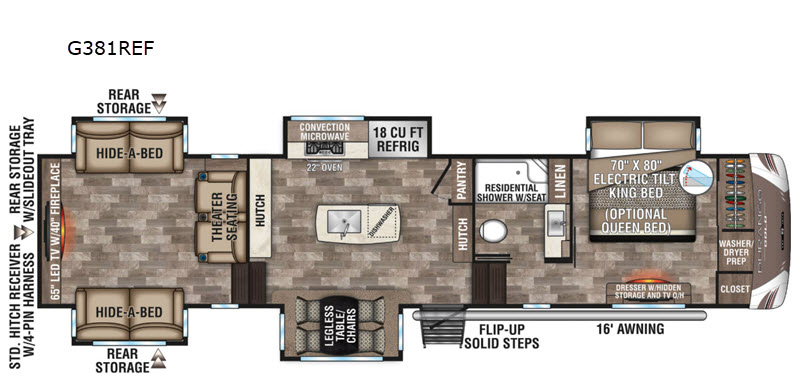

G381REF Floorplan
